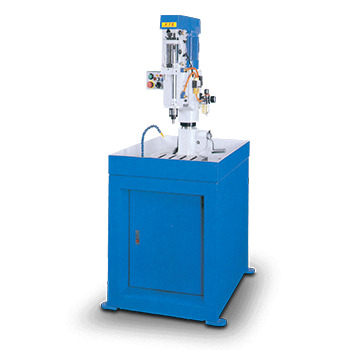

Hydraulic Peck Feed Drilling Machine

  • Model:H-50-100
DETAIL SPECIFICATIONS

ModelH-50-100H-60-150H-70-150H-90-150
Max. Drilling Capacity10mm16mm25mm35mm
Spindle TaperJT6MT2ER/32MT3ER40/MT4
Spindle Travel100mm150mm150mm150mm
Spindle Speed1000.2000.30001000.1500.2000500.1000.1500100.200.300
Number of Speed3333
Swing360mm460mm460mm520mm
Column Diameter80mm102mm102mm115mm
Table Diameter450x600mm600x800mm600x800mm600x800mm
Spindle to Table Distance 100-400mm100-700mm350-700mm350-750mm
Motor1HP2HP2HP3HP
Hydraulic Power kg/cm220kg/cm220kg/cm220kg/cm220kg/cm2
Overall Height1600mm1800mm1600mm2100mm
Weight260kg230kg600kg700kg
